Ultraviolet-fused quartz frosted glass diffuser
Classification：
Detail
Parameters
Technical Data
Characteristics
- 1-inch-diameter prototype diffuser
- UV-fused quartz substrate
- Transmittance exceeds 90% in the wavelength range greater than 225 nm.
- The light intensity exhibits a quasi-Gaussian spatial distribution.
- Clear Aperture: >90% of the diameter
Ultraviolet fused quartz frosted glass diffusers can produce a Gaussian‑like intensity distribution after the input light source passes through. Quartz exhibits high transmittance in the wavelength range above 350 nm. Furthermore, ultraviolet fused quartz does not exhibit laser‑induced fluorescence (as measured at a wavelength of 193 nm), making it exceptionally well suited for applications spanning from the ultraviolet to the near‑infrared spectral regions. Please refer to… Comparison Tag: Learn the detailed comparative results of the transmittance of N‑BK7 glass and UV‑fused quartz as a function of wavelength.
These diffusers are available in polishing grades of 120, 220, 600, or 1500 mesh. Our polishing process yields a surface with greater uniformity than sandblasted diffusers. The various mesh specifications enable scattering effects ranging from fine to coarse. Higher mesh counts (e.g., 1500 mesh) provide higher transmittance, whereas lower mesh counts (e.g., 120 mesh) offer a broader scattering distribution at the expense of transmittance. See Figure 1.1 for a comparison of our diffuser performance, and in… Curve View the individual charts for each diffuser, along with measurement details, in the tab.

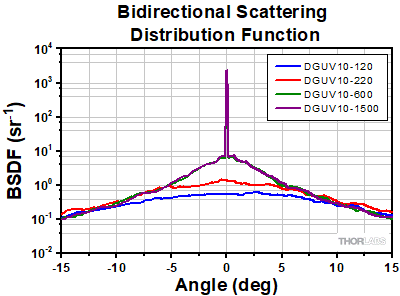

Figure 1.1 Please refer to the information on BSDF measurements. Curve Tag
When installing the diffuser, the frosted polished surface should face away from the light source. Provide Fixed lens mount to Clamp these diffusers.
If the transmittance in the ultraviolet range is not critical for your application, you may consider using our… N-BK7 frosted glass diffuser A series of products.
*Engineered Diffusers is a registered trademark of VIAVI Solutions, Inc. ®
