Super-Resolution Image Projection Based on a Diffraction Decoder
Author:
The team of Aydogan Ozcan at the University of California, Los Angeles, has proposed a hybrid image projection system that integrates a convolutional neural network (CNN)-based digital encoder with an all-optical diffractive decoder, enabling extended depth of field (DOF) and higher resolution. The CNN-based encoder compresses the input image into a compact phase representation, which is then projected by a low-resolution (LR) projector and processed by an analog diffractive decoder to achieve all-optical image reconstruction.
This optical decoder is entirely passive, designed to synthesize pixel‑level superresolution image projections with an extended depth of field while enabling superresolution image reconstruction without additional power consumption. The authors’ pixel‑superresolution (PSR) imaging projection system achieves high‑fidelity image synthesis across an extended depth of field of ≥250λ, where λ denotes the illumination wavelength, and delivers up to ~16× single‑pixel projection (SBP) enhancement in each lateral plane. Proof‑of‑concept experiments conducted in both the terahertz and visible spectral regions validate the feasibility of this approach and demonstrate the scalability of our hybrid system across different wavelengths. This imaging projection architecture can reduce the data storage and transmission requirements of display systems without increasing the power consumption of the optical decoder. Beyond extended‑depth‑of‑field PSR image projection, the underlying principles of this method can be extended to a wide range of applications, including optical metrology and microscopy.

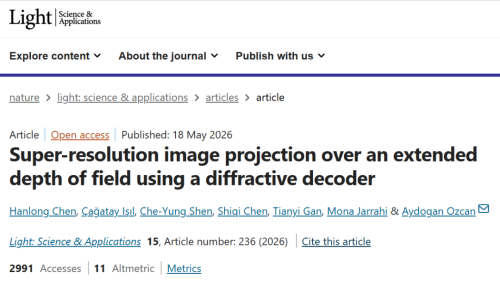

The research findings were published on May 18, 2026, in Light: Science & Applications, under the title “Super-resolution image projection over an extended depth of field using a diffractive decoder.”

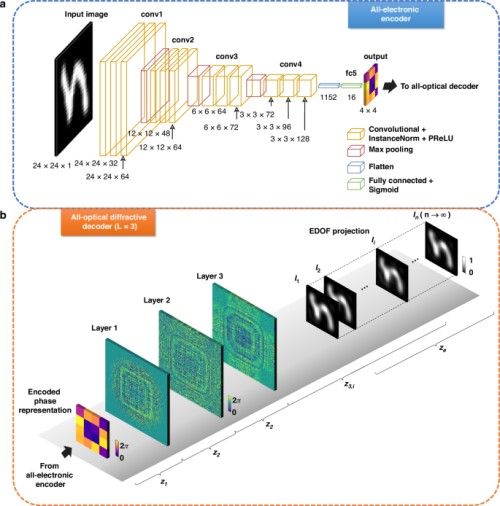

Figure 1: Schematic diagram of a hybrid PSR image projection system

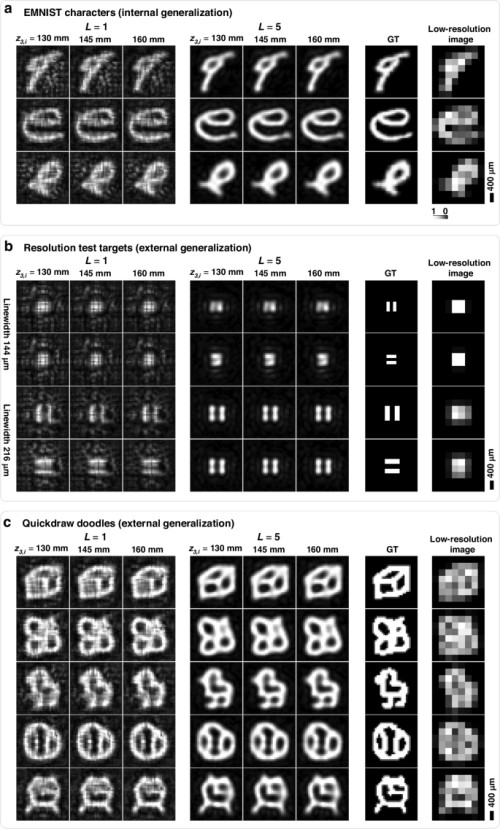

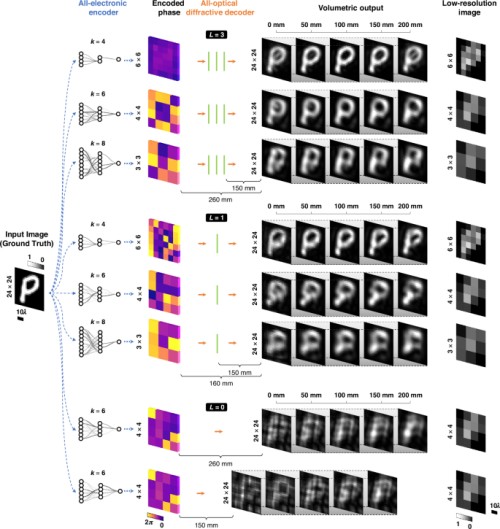

Figure 2: Performance Comparison of Hybrid PSR Image Projection Systems

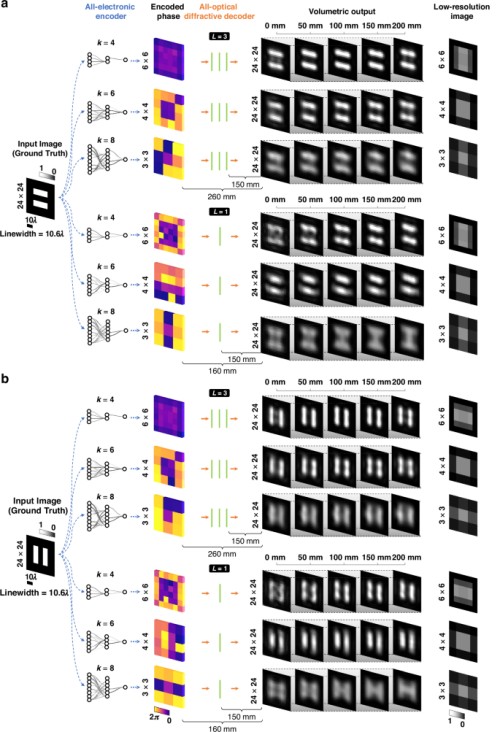

Figure 3: External generalization performance of the hybrid PSR image projection system on grating patterns.

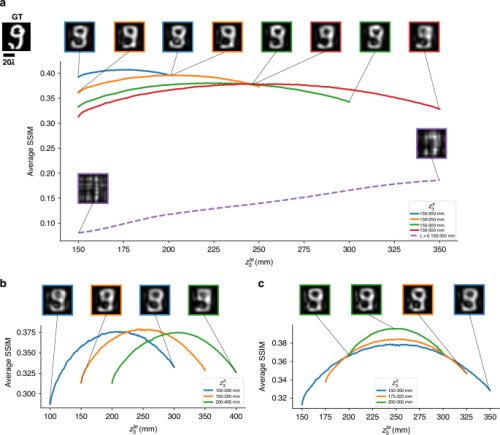

Figure 4: Quantitative analysis of the mixed PSR image projection system across different z‑range regions.

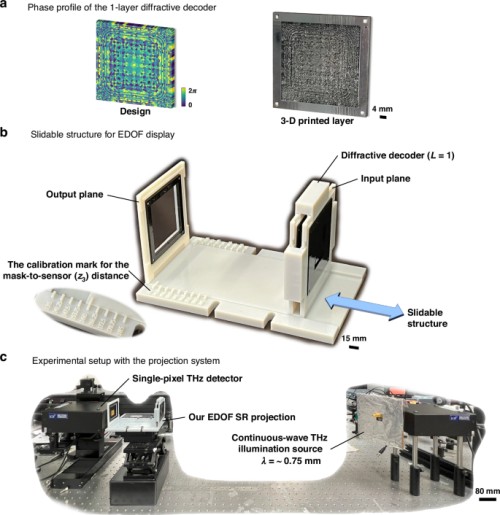

Figure 5: Experimental setup of the EDOF PSR imaging projection system

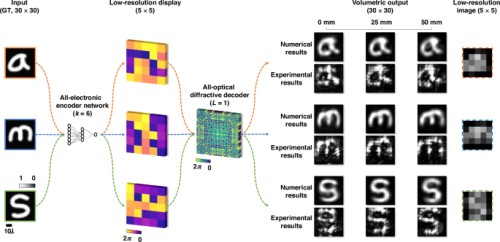

Figure 6: Experimental results of the terahertz-band extended-depth-of-field PSR imaging projection system.

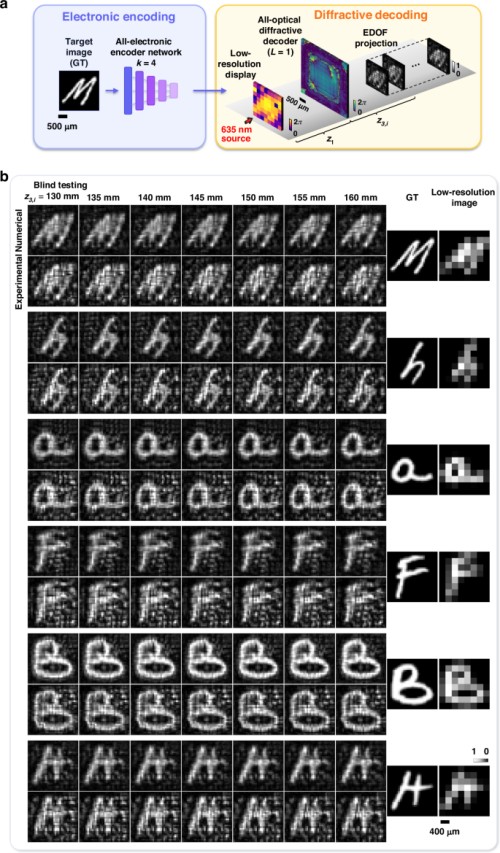

Figure 7: Experimental results of PSR image projection with extended depth of field in the visible light range.
Figure 8: Generalization performance analysis of the PSR image projection system for extended depth of field in the visible spectrum.
Source: Optics World
